GTZ Series End Mills have free cutting positive geometry which is ideally suited for aerospace alloys. These cutters have round high clearance angle round inserts that provide a smooth and clean cutting action. The combination of geometry and insert give the GTZ style tooling the machining qualities similar to helical tools. GTZ Series has precision hardware components to ensure quick accurate insert indexing. The hardened hardware components provide body protection for superior tool durability.

GTZ Series Face Mills

Geometry Specifications:
Axial: Positive Radial: Positive

GTZ Series Face Mills have free cutting positive geometry which is ideally suited for aerospace alloys. These cutters have round high clearance angle round inserts that provide a smooth and clean cutting action. The combination of geometry and insert give the GTZ style tooling the machining qualities similar to helical tools. GTZ Series has precision hardware components to ensure quick accurate insert indexing. The hardened hardware components provide body protection for superior tool durability.

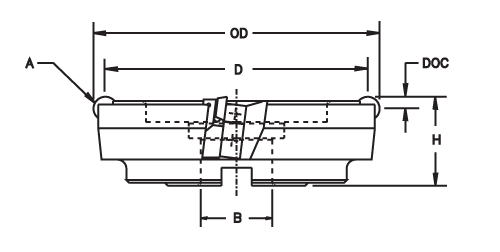

**GTZ Face Mill - Dimensional Specifications**
Product Number	D	OD	B	H	A	DOC	Insert	Teeth
3GTZR4	2.50	3.00	1.00	1.87	RADII	.250	RDE-43	6
4GTZR6	3.50	4.00	1.50	1.87	RADII	.250	RDE-43	8
5GTZR6	4.50	5.00	1.50	1.87	RADII	.250	RDE-43	10
6GTZR8	5.50	6.00	2.00	1.87	RADII	.250	RDE-43	12
7GTZR8	6.50	7.00	2.00	1.87	RADII	.250	RDE-43	14
8GTZRU	7.50	8.00	2.50	1.94	RADII	.250	RDE-43	16

Milling Cutter Nomenclature

**Parts**
Insert IC & Thickness	Insert Number	Anvil"	Anvil Screw	Insert Lock	Lock Screw	Anvil Lock	Lock Screw	Locator Seat	Wrench

.500 x .187	RDE-43__	1351R	1399	1570	1573	1571	SHCS 10-32 X 1/2	1429-3	1557-PT8

Use Checkbox Selections for Multi-Select feature to work

Insert Nomenclature

**Starting Machining Parameters**
Material	SFPM	FPT	Primary	Secondary
A-286	70-120	.005-.012	RDE-43 GR LTC-22	RDE-43 GR LTC-83
Inconel 718	70-120	.005-.012	RDE-43 GR LTC-22	RDE-43 GR LTC-83
Titanium, 6A1-4V	70-120	.005-.012	RDE-43 GR LTC-22	RDE-43 GR LTC-83
