Cat 40 / 50 Balanced Shell Mill Holders


Cat 40 / 50 Balanced Shell Mill Holders

National Standard Shell Mill Holders with V-Flange

for "BNS" Series Cutters

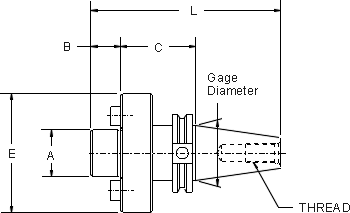

40 V-Flange - Dimensional Specifications
Product Number Gage Diameter A B C Thread E L Drive Key # Arbor Screw
40VST3B 1.750 0.750 0.687 1.375 5/8-11 1.75 4.75 0 1538
40VST4B 1.750 1.000 0.687 2.062 5/8-11 2.19 5.44 1 1537
40VST5B 1.750 1.250 0.687 2.125 5/8-11 2.88 5.50 2 1536
40VST6B 1.750 1.500 0.937 2.406 5/8-11 3.81 6.03 3 1535

50 V-Flange - Dimensional Specifications
Product Number Gage Diameter A B C Thread E L Drive Key # Arbor Screw
50VST3B 2.750 0.750 0.687 1.375 1"-8 1.75 4.75 0 1538
50VST4B 2.750 1.000 0.687 2.062 1"-8 2.19 5.44 1 1537
50VST5B 2.750 1.250 0.687 1.500 1"-8 2.75 6.19 2 1536
50VST6B 2.750 1.500 0.937 2.406 1"-8 3.81 6.03 3 1535
50VST8B 2.750 2.000 0.937 2.406 1"-8 4.86 7.34 4 1534

Arbor Nomenclature

 Parts
Drive Key # Arbor Screw
0

1534
1

1535

3

1537
4

1538
