LOVEJOY Tool Company, Inc. 800-843-8376


VNGAVNGA Type - S4 Style

Coated CBN Tipped inserts - "Sandwich" Technology
Allow 1 week lead time



VNGA

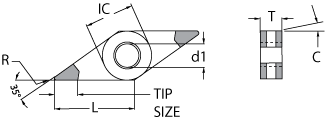

Insert Dimensional & Grade Specifications
Insert Number Dimensions PBC-10S4 PBC-15S4 PBC-25S4 PBC-40S4
IC T CL d1 R TIP SIZE Grey Iron
Super Alloy
Nodular
PM
Continuous
Hard Turn
Interrupted
Hard Turn
                                     Edge Prep
D E H
D E H
D E H
D E H
VNGA-331 0.375 0.187 .654 .150 0.016 .110


VNGA-332 0.375 0.187 .654 .150 0.031 .087






Tip Style Description
A2 Tips on one side only, 2 tips
A3 Tips on one side only, 3 tips
S4 Sandwich style, 4 tips (top & bottom)
S6 Sandwich style, 6 tips (top & bottom)
S8 Sandwich style, 8 tips (top & bottom)
ST Sandwich style, full (top & bottom)




Hone (Edge Prep) Description
D Boring, No Interruptions
E General purpose, All turning, 1st choice
H Interruptions, Part Deflection, Poor Rigidity




Application Ranges

   PBC-10   PBC-15    PBC-25   PBC-40
Application Range for PBC-10Application Range for PBC-15 Application Range for PBC-25Application Range for PBC-40
