TX Series Face Mills are free cutting Positive geometry that accomodates a variety of workpiece materials. The precision hardened hardware components ensure quick accurate insert indexing and provide body protection for superior tool durability. 1° dish angle generates a near 90° utilizing the standard SPE-63

TX Series Face Mills

Geometry Specifications:
Axial: Positive
Radial: Positive
1° Dish

TX Series Face Mills are free cutting Positive geometry that accomodates a variety of workpiece materials. The precision hardened hardware components ensure quick accurate insert indexing and provide body protection for superior tool durability. 1° dish angle generates a near 90° utilizing the standard SPE-63_ insert.

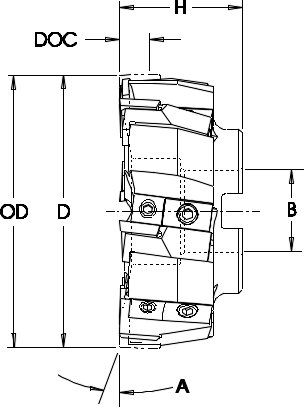

**TX Face Mill - Dimensional Specifications**
Product Number	D	OD	B	H	A	DOC	Insert	Teeth
4TXR6-1	4.000	4.060	1.50	2.62	1°	.460	SPE-63_	5
5TXR6-1	5.000	5.060	1.50	2.25	1°	.460	SPE-63_	6
6TXR8-1	6.000	6.060	2.00	2.25	1°	.460	SPE-63_	8
7TXR8-1	7.000	7.060	2.00	2.25	1°	.460	SPE-63_	10
8TXR8-1	8.000	8.060	2.00	2.31	1°	.460	SPE-63_	12
10TXRU-1	10.000	10.060	2.00	2.31	1°	.460	SPE-63_	16
12TXRU-1	12.000	12.060	2.50	2.62	1°	.460	SPE-63_	20

Milling Cutter Nomenclature

**Parts**
Insert IC & Thickness	Insert Number	Anvil	Anvil	Anvil Screw	Insert Lock	Lock Screw	Anvil Lock	Lock Screw	Wrench

.500 x .188	SPE-63_	1513R	1513RA	1477	1619	1450	1618	SHCS 1/4-28 x 5/8	1557-PT5

Use Checkbox Selections for Multi-Select feature to work

Insert Nomenclature

**Starting Machining Parameters**
Material	SFPM	FPT	Primary	Secondary
Gray Iron, Class 30	200 - 500	.005-.012	SPE-634 GR 586XRm	SPE-634 GR LTC-21
Tool Steel, D2	250 - 350	.005-.012	SPE-634 GR 606jRm	SPE-634B GR LTC-14
Medium Alloy Steel	300 - 700	.005-.012	SPE-634B GR LT-50	SPE-634B GR M+
Tool Steel, P20	300 - 700	.005-.012	SPE-634B GR LT-50	SPE-634B GR LTC-14
Soft Alloy Steel	400 - 800	.005-.012	SPE-634 GR LT-40	SPE-634 GR LTC-14
