Geometry Specifications:
Axial: Positive
Radial: Positive
1° Dish

|
| TX Series End Mills Geometry Specifications: Axial: Positive Radial: Positive 1° Dish |
|
|
TX Series End Mills are free cutting Positive geometry that accomodates a variety of workpiece materials. The precision hardened hardware components ensure quick accurate insert indexing and provide body protection for superior tool durability. 1° dish angle generates a near 90° utilizing the standard SPE-63_ insert. |

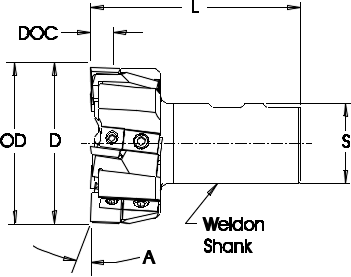

| Product Number | D | OD | S | L | A | DOC | Insert | Teeth |
| 30TXRW5-1 | 3.000 | 3.000 | 1.25 | 4.220 | 1° | .460 | SPE-63_ | 4 |
| 30TXRW8-1 | 3.000 | 3.000 | 2.00 | 5.220 | 1° | .460 | SPE-63_ | 4 |
| 35TXRW5-1 | 3.500 | 3.500 | 1.25 | 4.220 | 1° | .460 | SPE-63_ | 5 |
| 35TXRW8-1 | 3.500 | 3.500 | 2.00 | 5.220 | 1° | .460 | SPE-63_ | 5 |
| 40TXRW5-1 | 4.000 | 4.000 | 1.25 | 4.220 | 1° | .460 | SPE-63_ | 5 |
| 40TXRW8-1 | 4.000 | 4.000 | 2.00 | 5.220 | 1° | .460 | SPE-63_ | 5 |
| Milling Cutter Nomenclature |
| Insert Nomenclature |
| Material | SFPM | FPT | Primary | Secondary |
| Gray Iron, Class 30 | 200 - 500 | .005-.012 | SPE-634 GR 586XRm | SPE-634 GR LTC-21 |
| Tool Steel, D2 | 250 - 350 | .005-.012 | SPE-634 GR 606jRm | SPE-634B GR LTC-14 |
| Medium Alloy Steel | 300 - 700 | .005-.012 | SPE-634B GR LT-50 | SPE-634B GR M+ |
| Tool Steel, P20 | 300 - 700 | .005-.012 | SPE-634B GR LT-50 | SPE-634B GR LTC-14 |
| Soft Alloy Steel | 400 - 800 | .005-.012 | SPE-634 GR LT-40 | SPE-634 GR LTC-14 |
