STX-45 Face Mills


STX Series Face Mills

Geometry Specifications:
Axial: Positive
Radial: Positive
45° Lead

STX Series Face Mills are free cutting Positive geometry that accomodates a variety of workpiece materials. This tool has Non-rhythmic insert spacing which counters harmonic vibration and deflection. The precision hardened hardware components ensure quick accurate insert indexing and provide body protection for superior tool durability. It is engineered for balance and stability during extreme roughing applications.

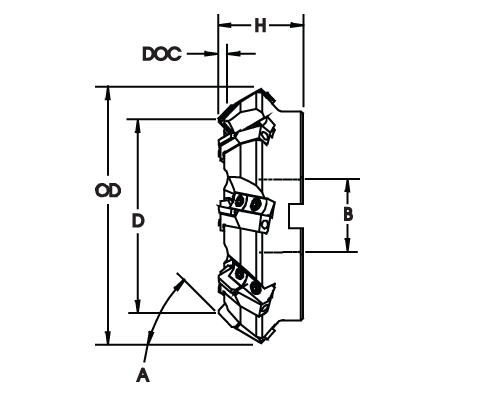

STX Face Mill - Dimensional Specifications
Product Number D OD B H A DOC Insert Teeth
4STXR6-45 4.000 5.890 1.50 2.62 45° .399 SPE-63AM 5
5STXR6-45 5.000 6.860 1.50 2.62 45° .399 SPE-63AM 6
6STXR8-45 6.000 7.770 2.00 2.62 45° .399 SPE-63AM 8
7STXR8-45 7.000 8.740 2.00 2.62 45° .399 SPE-63AM 9
8STXRU-45 8.000 9.720 2.50 2.62 45° .399 SPE-63AM 10
10STXRU-45 10.000 11.700 2.50 2.62 45° .399 SPE-63AM 13
12STXRU-45 12.000 13.670 2.50 2.62 45° .399 SPE-63AM 15

Milling Cutter Nomenclature

 Parts
Insert IC & Thickness Insert Number Anvil Anvil Screw Insert Lock Lock Screw Anvil Lock Lock Screw Wrench

.750 x .188 SPE-63AM 1513RA-C1
 1477
 1619
 1450
 1618
 SHCS 1/4-28 x 5/8
 1557-PT5
Use Checkbox Selections for Multi-Select feature to work


Insert Nomenclature

Starting Machining Parameters
Material SFPM FPT Primary Secondary
Gray Iron, Class 30 200 - 500 .005-.015 SPE-63AM GR 586XRm SPE-63AM GR LTC-21
Tool Steel, D2 250 - 350 .005-.015 SPE-63AM GR 606jRm SPE-63AMB GR LTC-14
Medium Alloy Steel 300 - 700 .005-.015 SPE-63AMB GR LT-50 SPE-63AMB GR M+
Tool Steel, P20 300 - 700 .005-.015 SPE-63AMB GR LT-50 SPE-63AMB GR LTC-14
Soft Alloy Steel 400 - 800 .005-.015 SPE-63AM GR LT-40 SPE-63AM GR LTC-14
