TNE Type

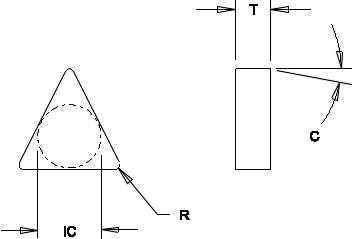

Insert Dimensional & Grade Specifications

Insert Number	IC	T	R	C	Edge Preparation	Silicon Nitride
						LTC-1000	LTC-1200
TNE-433W820	0.500	0.188	0.047	0°	8° x .020
TNE-434W820	0.500	0.188	0.062	0°	8° x .020
