| SPC Type
|
Insert

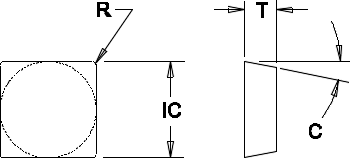

Dimensional & Grade Specifications
| Insert
Number |
IC |
T |
R |
C |
Edge Preparation |
Silicon Nitride |
| LTC-1000 |
LTC-1200 |
| SPC-432W630 |
0.500 |
0.188 |
0.031 |
11° |
6° x .030 |
|
|
| SPC-433W630 |
0.500 |
0.188 |
0.047 |
11° |
6° x .030 |
|
• |
| SPC-433W820 |
0.500 |
0.188 |
0.047 |
11° |
8° x .020 |
|
• |
| SPC-433ZW630 |
0.500 |
0.188 |
0.047 |
11° |
6° x .030 |
|
|
| SPC-434W630 |
0.500 |
0.188 |
0.062 |
11° |
6° x .030 |
|
• |
| SPC-434W820 |
0.500 |
0.188 |
0.062 |
11° |
8° x .020 |
|
• |
| SPC-533W630 |
0.625 |
0.188 |
0.047 |
11° |
6° x .030 |
|
|
| SPC-534W630 |
0.625 |
0.188 |
0.062 |
11° |
6° x .030 |
|
|
| SPC-633W630 |
0.750 |
0.188 |
0.047 |
11° |
6° x .030 |
|
|
| SPC-634W630 |
0.750 |
0.188 |
0.062 |
11° |
6° x .030 |
|
|
