PCD / CBN Cutter Nomenclature

B
1
0375
2
__
100
3
D
4
100
5
__
S
6
050
7
R
8
__
047
9


1
Style
B = Ball Nose
E = Non-Center Cut
C = Center Cut
2
Cut Diameter
Cut Diameter
3

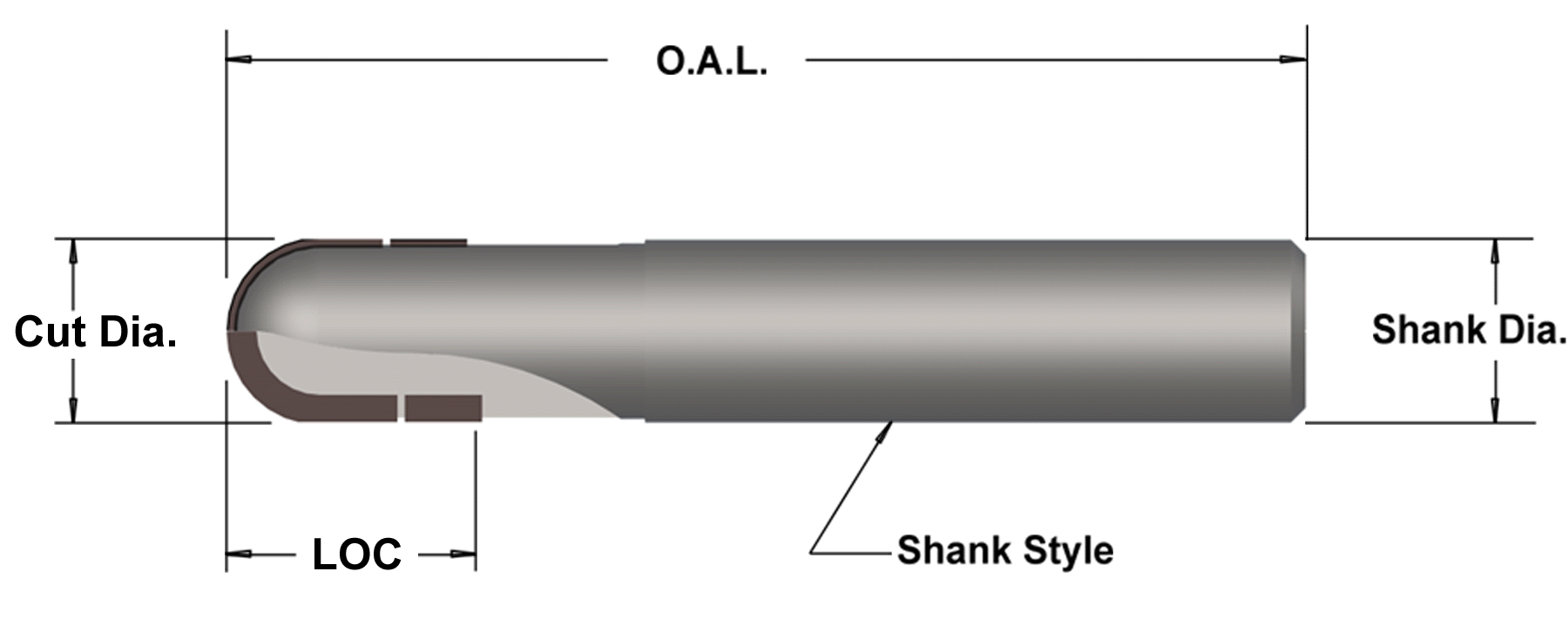

LOC
Length of Cut (LOC)
4
Over All Length O.A.L.
A = 2.00
B = 2.50
C = 3.00
D = 3.50
in 1/2" increments


5
Materials by Grade
PCDCBN
100200
105205
110220
130240
 260
 270
6
Shank Style
S = Straight Shank
W = Weldon Shank
7
Mount Diameter
Shank Diameter
8
Rotation
Right or Left Hand (R or L)
9
Tip Radius
Corner Cut Radius
