650 Series Face Mills


650 Series Face Mills

Geometry Specifications:
Axial:
Negative
Radial:
Negative
45°
Lead

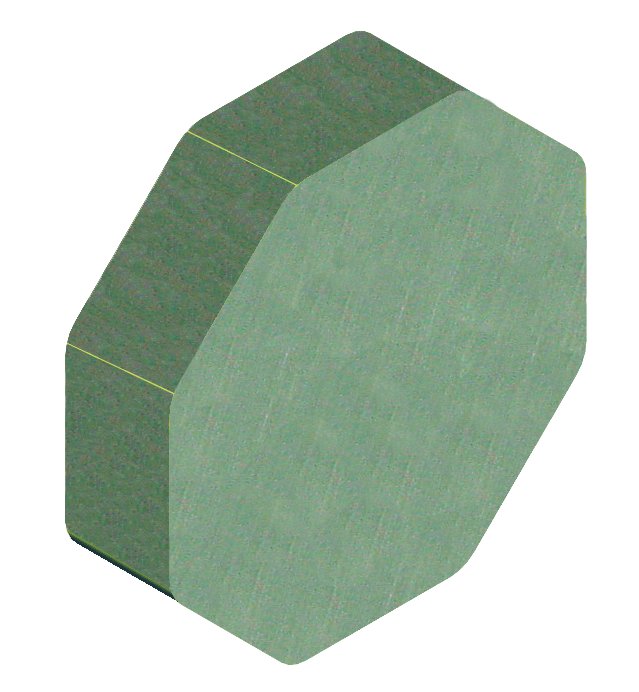

650 Series Face Mills are free cutting Negative geometry that accomodates a variety of workpiece materials. The 650 Series Face Mills use the ONEG style inserts for the maximum of 16 cutting edges! Our ONEG style inserts have new coated grades for steel and ductile iron. This tooling has strong negative cutting geometry and is used for roughing as well as semi-finishing with its positive chip control inserts! These face mills are available from 3" to 8" diameter with medium or fine pitch and larger diameters include adjustable wiper stations. The inserts all have 16 cutting edges and are .250 thick allowing for longer tool life! ONEG inserts have NEW, coated grades for steel and ductile iron.






650 Series Face Mill - Dimensional Specifications
Product Number D OD B H A DOC Insert #Stations #Wiper Sta
650F0300AON6-125R 3.000 3.470 1.25 2.31 45° .200 ONEG-64_-K1_ 6 0
650F0300BON6-125R 3.000 3.470 1.25 2.31 45° .200 ONEG-64_-K1_ 9 0
650F0400AON6-150R 4.000 4.460 1.50 2.31 45° .200 ONEG-64_-K1_ 8 2
650F0400BON6-150R 4.000 4.460 1.50 2.31 45° .200 ONEG-64_-K1_ 12 3
650F0500AON6-150R 5.000 5.460 1.50 2.31 45° .200 ONEG-64_-K1_ 10 2
650F0500BON6-150R 5.000 5.460 1.50 2.31 45° .200 ONEG-64_-K1_ 15 3
650F0600AON6-200R 6.000 6.460 2.00 2.31 45° .200 ONEG-64_-K1_ 12 3
650F0600BON6-200R 6.000 6.460 2.00 2.31 45° .200 ONEG-64_-K1_ 18 3
650F0800AON6-UNVR 8.000 8.450 2.50 2.31 45° .200 ONEG-64_-K1_ 16 4
650F0800BON6-UNVR 8.000 8.450 2.50 2.31 45° .200 ONEG-64_-K1_ 24 6

Milling Cutter Nomenclature

 Parts
Insert
IC & Thickness
Lock Lock Screw Lock Screw Adj. Pin Adj. Pin Screw S.S.S. Brass Tip Wrench
ONEG-64_-K1_ 3502-1133-5002
1451
1452
3502-2350-0017
1484
SSS 1/4-28 X 1/2
1557-PT5
Use Checkbox Selections for Multi-Select feature to work


Insert Nomenclature

Starting Machining Parameters
Material SFPM FPT Roughing Finishing
Gray Iron, Class 30 200 - 500 .005-.015 ONEG-642-K1 GR LT-8473B ONEG-64Z-K1 GR LT-8473B
Tool Steel, D2 250 - 350 .005-.015 ONEG-642-K1A GR LT-3081 ONEG-64Z-K1A GR LT-3081
Medium Alloy Steel 300 - 700 .005-.015 ONEG-642-K1A GR LT-3081 ONEG-64Z-K1A GR LT-3081
Tool Steel, P20 300 - 700 .005-.015 ONEG-642-K1A GR LT-3081 ONEG-64Z-K1A GR LT-3081
Soft Alloy Steel 400 - 800 .005-.015 ONEG-642-K1A GR LT-3081 ONEG-64Z-K1A GR LT-3081
Stainless, 304, 316 300 - 500 .005-.015 ONEG-642-K1 GR LT-8473B ONEG-64Z-K1 GR LT-8473B
