EMS Slab MillsEMS Series Slab Mills - Shank Style

Geometry Specifications:
Axial: 7° Positive   Radial: Negative   Lead - Sta. 1: 0°
Axial: 7° Positive   Radial: Positive   Lead - Others: 0°


EMS Series Slab Mills multipurpose geometry is suitable for a broad range or workpiece materials. Excellent overall length to diameter ratio ensures necessary rigidity and stiffness. Available in shell end mount or integral shank to accommodate most machine tools.

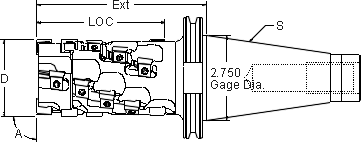

 EMS Series (Shank Style) - Dimensional Specifications
Product Number D S EXT A LOC Insert Teeth Teeth End Cap Effective Flutes
2.5-3.0EMSRECRV 2.50 50V 6.00 90° 3.00 SPXV-43__
SPE-43__		 12 4 2
3.0-4.0EMSRECRV 3.00 50V 7.00 90° 4.00 SPXV-43__
SPE-43__		 16 6 2

Milling Cutter Nomenclature

 Parts
Insert I.C. & Thickness Product Number End Cap Screw Insert Number Insert Number Insert Lock End Cap Lock Screw Lock Screw Wrench

.500 x .188 2.5-3.0EMSRECRV 1538
 SPXV-43__

 SPE-43__

 3502-0935-5003
 2.5EMSC-R
 1573
 1557-PT8
3.0-4.0EMSRECRV 1537
 3.0EMSC-R
Use Checkbox Selections for Multi-Select feature to work


Insert Nomenclature

Starting Machining Parameters
Material SFPM FPT Primary Secondary
Tool Steel, D2-D7 200-350 .003-.012 SPXV-432 GR LT-50 SPE-432B GR LT-50
Alloy Steel Heat Treat 44Rc 100-175 .003-.012 SPXV-432 GR LT-50 SPE-432B GR LT-50
Medium Alloy Steel 300-550 .003-.012 SPXV-432B GR LT-50 SPE-432B GR LT-50
Tool Steel, P20 300-550 .003-.012 SPXV-432B GR LT-50 SPE-432B GR LT-50
Soft Alloy Steel 350-700 .003-.012 SPXV-432B GR LT-50 SPE-432B GR LT-50
PH Type Stainless Steel 17-4, 15-5, 13-8 300-550 .003-.012 SPXV-432B GR LT-50 SPE-432B GR LTC-14
Austenitic Stainless Steel (300) 300-850 .003-.012 SPXV-432B GR LT-50 SPE-432B GR LTC-14
