CE-45 End Mills CE-45 Series End Mills

Geometry Specifications:
Axial: 0°   Radial: 0°   Lead: 45°

CE-45 Series End Mills are engineered for free cutting chamfering cuts on a variety of workpiece materials. Multifunction design allows CE-45 to plunge or produce peripheral cuts. Simple screw on insert design provides quick accurate indexing. Small shank diameters accommodate a broad range of machine tool types.

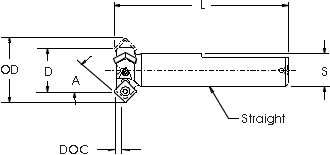

 CE-45 Series - Dimensional Specifications
Product Number D OD S L A DOC Insert Teeth
1.00CE45RW2.5 0.49 1.00 .625 4.00 45° * SPEB-32__ 1
1.50CE45RW3 0.99 1.50 .750 4.00 45° * SPEB-32__ 3
2.00CE45RW4 1.49 2.00 1.000 5.00 45° * SPEB-32__ 4

NOTE:
Actual Insert Flats:
* .221 with SPEB-322
* .244 with SPEB-321

Milling Cutter Nomenclature

 Parts
Insert I.C. & Thickness Insert Number Torx Screw Lock Screw Wrench

.375 x .125 SPEB-32__ 3605-0001-0005
 1557-TX10
Use Checkbox Selections for Multi-Select feature to work


Insert Nomenclature

Starting Machining Parameters
Material SFPM FPT Primary Secondary
Gray Cast Iron, Class 30 200-500 .003-.010 SPEB-321J GR LTC-10 SPEB-321B GR LT-50
Tool Steel, D2 250-350 .003-.010 SPEB-321B GR LT-50 SPEB-321 GR LTC-14
Ductile Iron 300-700 .003-.010 SPEB-321B GR LT-50 SPEB-321 GR LTC-14
Medium Alloy Steel 300-700 .003-.010 SPEB-321 GR LTC-14 SPEB-321B GR LT-50
Soft Alloy Steel 400-800 .003-.010 SPEB-321 GR LTC-14 SPEB-321B GR LT-50
